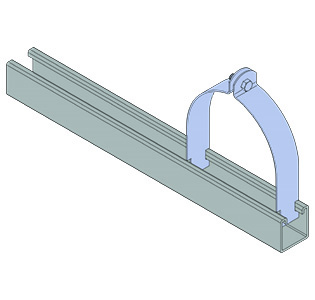

Pipe Clamp S2024 Series
Slotted hex head screw & nut included
Finish: Hot Dipped Galvanised (HDG) AS4680/ISO1461 , Stainless Steel 316 (SS316) , Zinc Plated (ZP)
Ordering Information:
| Part No | OD Size (mm) | Wt/100 (kg) | Design Load (kN) | Part No | OD Size (mm) | Wt/100 (kg) | Design Load (kN) |
| S2024 | 6.4 | 3.6 | 1.8 | S1121 | 114.3 | 30.4 | 4.4 |
| S2025 | 9.5 | 3.6 | S2059 | 117.5 | 31.8 | ||
| S2026 | 12.7 | 4.1 | S2060 | 120.7 | 32.7 | ||
| S2027 | 15.9 | 4.5 | S2061 | 123.8 | 33.1 | ||
| S2028 | 19.1 | 5.0 | S2062 | 127.0 | 33.6 | ||
| S2029 | 22.2 | 5.4 | S2063 | 130.2 | 34.5 | ||
| S2030 | 25.4 | 6.4 | 2.7 | S2064 | 133.4 | 34.9 | |
| S2031 | 28.6 | 6.8 | S2065 | 136.5 | 35.4 | ||
| S2032 | 31.8 | 7.3 | S2066 | 139.7 | 35.8 | ||
| S2033 | 34.9 | 7.7 | S2067 | 142.9 | 39.9 | ||
| S2034 | 38.3 | 8.2 | S2068 | 146.1 | 40.8 | ||
| S2035 | 41.3 | 8.6 | S2069 | 149.2 | 41.7 | ||
| S2036 | 44.5 | 13.2 | 3.4 | S2070 | 152.4 | 42.8 | |
| S2037 | 47.6 | 12.7 | S2070-61 | 155.6 | 43.5 | ||
| S2038 | 50.5 | 14.1 | S2070-62 | 158.8 | 44.5 | ||
| S2039 | 54.0 | 14.5 | S2070-63 | 161.9 | 44.9 | ||
| S2040 | 57.2 | 15.0 | S2070-64 | 165.1 | 45.4 | ||
| S2041 | 60.3 | 15.4 | S1124 | 168.3 | 46.3 | ||
| S2042 | 63.5 | 15.9 | S2070-66 | 171.5 | 47.2 | ||
| S2043 | 66.7 | 16.8 | S2070-67 | 174.6 | 48.1 | ||
| S2044 | 69.9 | 17.2 | S2070-70 | 177.8 | 49.0 | ||
| S2045 | 73.0 | 18.1 | S2070-71 | 181.0 | 49.9 | ||
| S2046 | 76.2 | 18.6 | S2070-72 | 184.2 | 50.8 | ||
| S2047 | 79.4 | 19.5 | S2070-73 | 187.3 | 51.7 | ||
| S2048 | 82.6 | 20.4 | S2070-74 | 190.5 | 52.6 | ||
| S2049 | 85.7 | 20.9 | S2070-75 | 193.7 | 53.1 | ||
| S2050 | 88.9 | 21.3 | S2070-76 | 196.9 | 54.0 | ||
| S2051 | 92.1 | 25.4 | 4.4 | S2070-77 | 200.0 | 54.9 | |
| S2052 | 95.3 | 26.3 | S2070-80 | 203.2 | 55.8 | ||
| S2053 | 98.4 | 27.2 | S2070-81 | 206.4 | 56.7 | ||
| S2054 | 101.6 | 28.1 | S2070-82 | 209.6 | 57.2 | ||
| S2055 | 114.8 | 28.1 | S2070-83 | 212.7 | 58.1 | ||
| S2056 | 108.0 | 29.0 | S2070-84 | 215.9 | 58.5 | ||
| S2057 | 111.1 | 29.9 | S1126 | 219.1 | 59.0 |
